AutoReflex is a real-time neuromuscular aim-assist system that combines computer vision, servo-driven mechanical actuation, and transcutaneous electrical nerve stimulation (TENS) to physically guide a player's aim. A Jetson Nano detects on-screen targets at 100fps and streams coordinates over UDP to a Raspberry Pi, which runs a 1kHz PID control loop driving a Feetech ST3215 servo and optional solenoid trigger — closing the loop from pixels to physical movement in under 15ms.
The Problem
Aim assist in competitive gaming is almost universally software-only — a cheat applied in the rendering pipeline, trivially detectable by anti-cheat systems. The question we wanted to answer: what does a hardware-level aim-assist look like? One that operates entirely outside the game process, at the level of physical muscle stimulation and mechanical actuation, with end-to-end latency low enough to be useful in real play.
The result is a closed-loop system spanning two compute nodes, a servo motor, and a TENS unit — all synchronized at kilohertz rates.

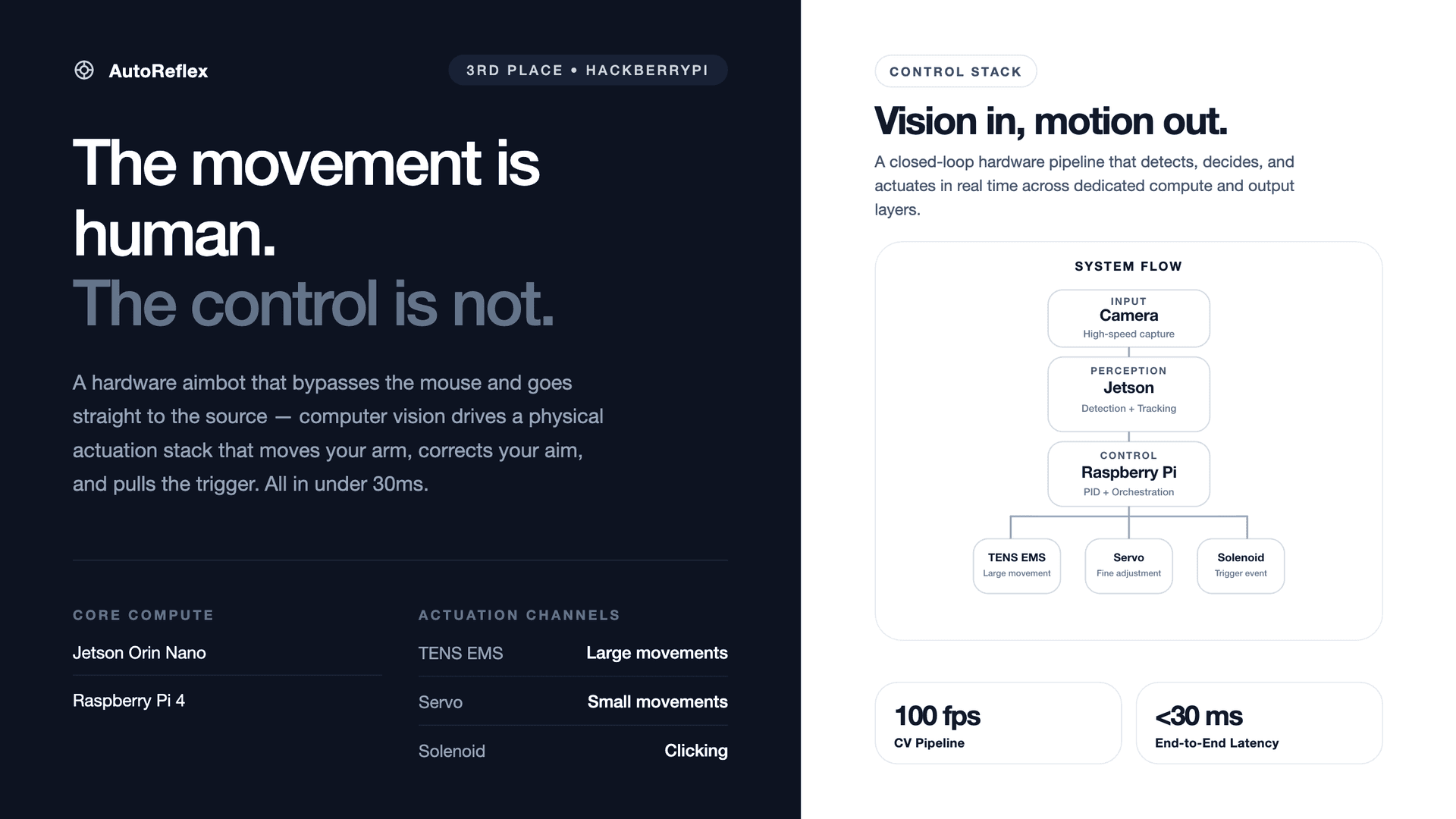

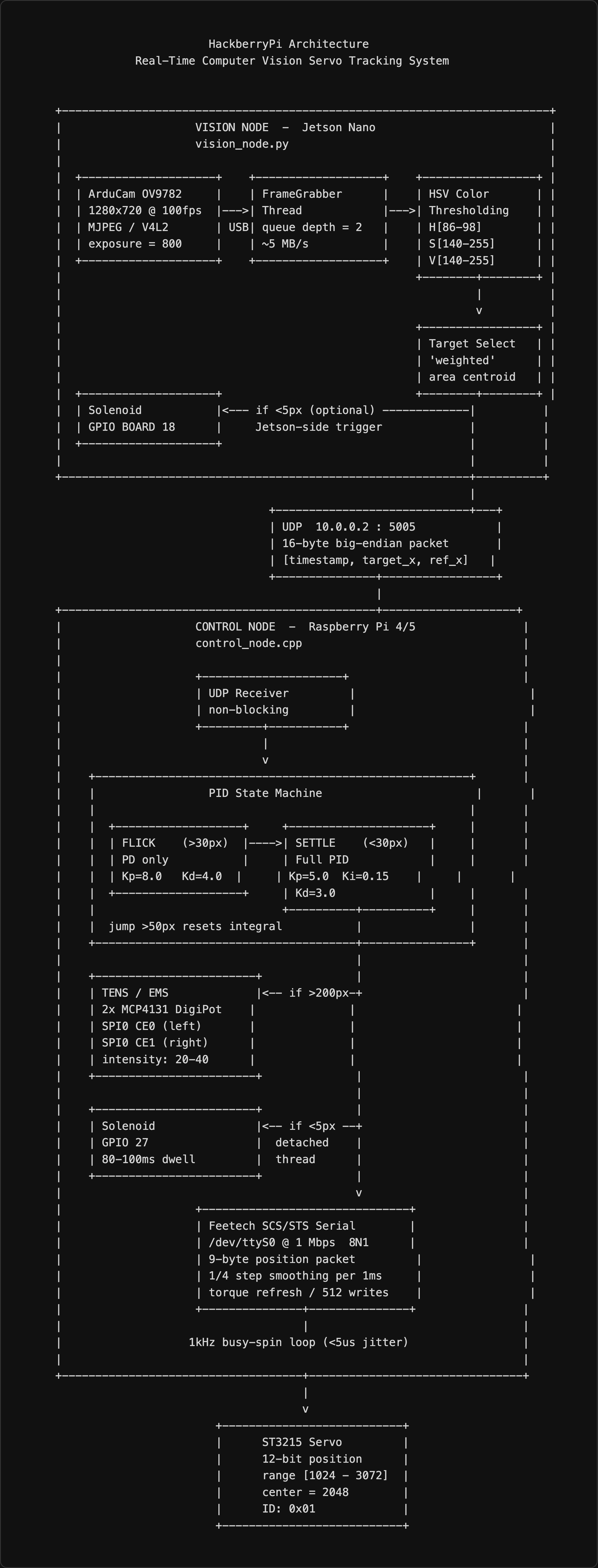

Architecture
AutoReflex runs as two cooperating nodes over a direct Ethernet link:
- Vision node (Jetson Nano): Arducam OV9782 captures at 100fps, runs HSV color thresholding or YOLO11n detection, and transmits 20-byte UDP packets containing target centroid, crosshair position, and blob width.
- Control node (Raspberry Pi): Receives packets and runs a 1kHz busy-spin PID loop — driving the ST3215 servo over half-duplex UART at 1 Mbps, firing a solenoid trigger via GPIO on target lock, and modulating TENS (EMS) intensity via two MCP4131 digital potentiometers over SPI.
┌──────────────────────┐ UDP (20 bytes) ┌──────────────────────────────────┐
│ JETSON NANO │ ───────────────────────────────► │ RASPBERRY PI 4/5 │
│ │ timestamp | tx | cx | blob_w │ │
│ ┌────────────────┐ │ │ 1kHz PID Loop │
│ │ Arducam OV9782 │ │ │ │
│ │ 100fps MJPEG │ │ │ ┌──────────┐ │
│ └───────┬────────┘ │ │ │ ST3215 │ Servo (UART 1Mbps)│
│ │ │ │ └──────────┘ │
│ ┌───────▼────────┐ │ │ ┌──────────┐ │
│ │ VisionProcessor│ │ │ │ Solenoid │ Trigger (GPIO) │
│ │ HSV / YOLO │ │ │ └──────────┘ │
│ └────────────────┘ │ │ ┌──────────┐ │
│ │ │ │ TENS │ EMS (SPI/MCP4131) │
└──────────────────────┘ │ └──────────┘ │
10.0.0.1 └──────────────────────────────────┘
10.0.0.2

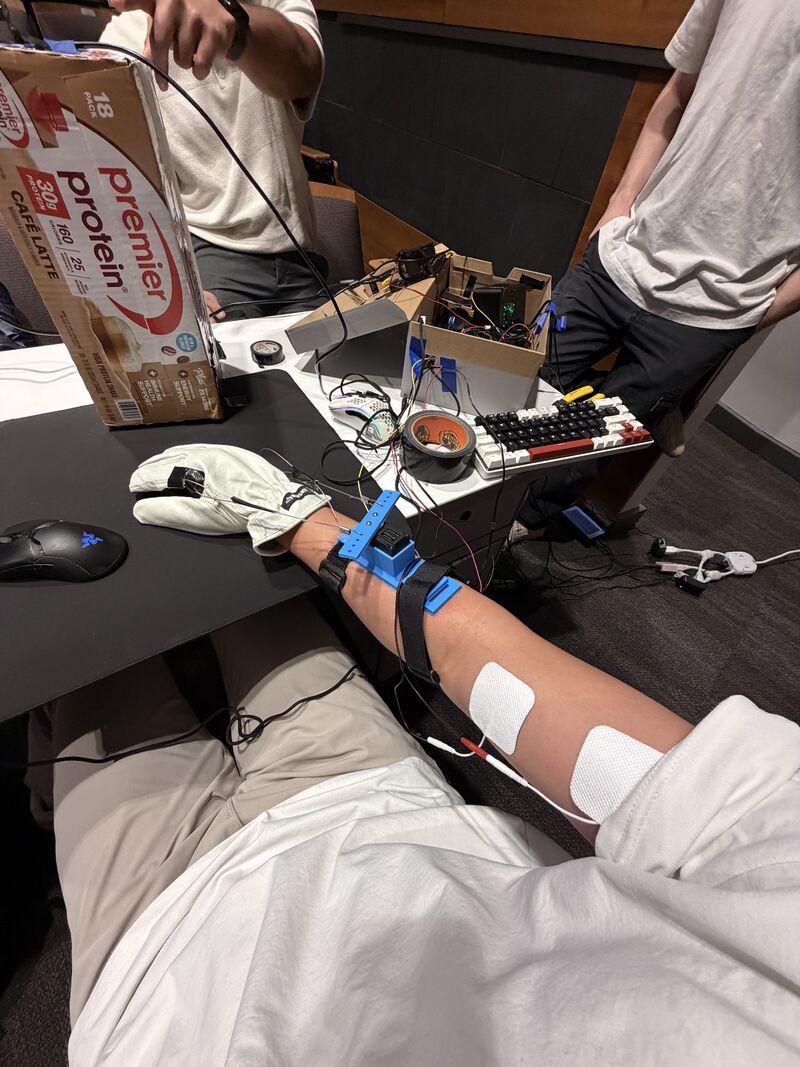

Demo Image
How It Works
Vision Pipeline
The Arducam OV9782 streams 1280×720 MJPEG at 100fps over USB 2.0 into a FrameGrabber thread with a shallow queue of depth 2. Pre-allocated numpy buffers eliminate per-frame heap allocation. Detection runs in two modes:
- HSV thresholding for Aimlabs cyan targets — ~2ms per frame
- YOLO11n for Valorant enemy detection, trained on A100 SXM and quantized for Jetson inference
Each detected frame produces a 20-byte big-endian UDP packet:
| Field | Type | Bytes | Description |
|---|---|---|---|
| timestamp | double | 8 | CLOCK_MONOTONIC capture time |
| tx | float | 4 | Target centroid X (pixels) |
| cx | float | 4 | Crosshair reference X (pixels) |
| blob_w | float | 4 | Target bounding-rect width (pixels) |
PID State Machine
The control node runs a 1kHz busy-spin loop (<5µs jitter) with a two-state machine:
| State | Condition | Controller | Purpose |
|---|---|---|---|
| FLICK | |error| > 30px | PD (Kp=3.0) | Fast ballistic move toward target |
| SETTLE | |error| < 30px | PID (Kp=3.0, Ki=0.15) | Precision lock with integral action |
| FIRE | |error| < 5px | Solenoid pulse | Target acquired — click |
Overshoot damping halves gains for 10 frames after error sign reversal. Backlash compensation ramps a dead-zone offset over 5 frames on direction change. Fire threshold, flick threshold, and settle gains all scale dynamically with apparent target size (blob_w) — tighter for distant small targets, more aggressive for close large ones.
TENS Integration
Two MCP4131 digital potentiometers over SPI (CE0 + CE1) modulate TENS electrode intensity as a function of pixel error. Large errors trigger stronger muscle stimulation, physically redirecting the arm before the servo completes its mechanical slew. This creates a two-channel correction: electrical (fast, ~1ms) and mechanical (slower, ~10ms).
Latency Budget
| Stage | Time | Notes |
|---|---|---|
| Camera capture | ~10ms | 100fps MJPEG, hardware-timed |
| HSV detection | ~2ms | Pre-allocated buffers, no malloc |
| UDP transit | <1ms | Direct Ethernet, no routing |
| PID compute | <1µs | All stack, no heap |
| Servo write | ~9µs | 9 bytes @ 1 Mbps |
| End-to-end | ~13ms | Pixel to servo movement |
Hardware
| Component | Role | Interface |
|---|---|---|
| NVIDIA Jetson Nano | Vision processing (HSV/YOLO) | USB (camera), Ethernet (UDP) |
| Arducam OV9782 | 100fps global shutter camera | USB 2.0 (MJPEG) |
| Raspberry Pi 4/5 | Real-time servo control | Ethernet (UDP), UART, GPIO, SPI |
| Feetech ST3215 | 12-bit digital servo (4096 steps/360°) | Half-duplex UART @ 1 Mbps |
| Solenoid | Mouse click actuator | GPIO via MOSFET driver |
| MCP4131 × 2 | Digital potentiometer (TENS intensity) | SPI (CE0 + CE1) |
| TENS unit | Transcutaneous electrical stimulation | Modulated by MCP4131 |
Challenges & Solutions
- 1kHz determinism on Linux: Achieving <5µs jitter on a non-RTOS required a busy-spin loop with CPU affinity pinning rather than timer-based sleep, trading a core for real-time guarantees.
- Half-duplex UART at 1 Mbps: The Feetech SCS/STS protocol uses a shared TX/RX line. Direction switching timing is critical — too slow and packets corrupt; too fast and the servo doesn't respond. First-order position smoothing absorbs the residual jitter.
- TENS safety: Intensity is hard-capped at MCP4131 wiper value 40 (out of 127). The TENS output is purely modulated through the potentiometer — the unit's own safety circuitry remains in the loop.
- Dynamic scaling with blob width: A naive fixed-threshold controller overshoots on close targets and undershoots on distant ones. Scaling all thresholds and gains proportionally to
blob_wlinearizes the response across ranges.
Outcome
AutoReflex placed 3rd at HackberryPi and demonstrates that hardware-level aim assist — operating entirely outside the game process — is feasible at latencies competitive with human reaction time. The same Jetson-to-Pi UDP architecture, PID state machine, and TENS integration pattern applies directly to any real-time physical control problem: robotic manipulation, prosthetics, or closed-loop rehabilitation devices.
Links
- Video Demo: YouTube
Acknowledgements
- pigpio — Raspberry Pi GPIO library with microsecond-level timing
- Ultralytics YOLO — Object detection framework
- Feetech SCS/STS Protocol — Servo communication protocol
